Planer machine guide to working principles, types, and applications

What a planer machine does

A planer machine is a metalworking machine tool that removes material with a single-point cutting tool and a linear reciprocating motion. In the common planer layout, the workpiece is clamped to a large table that travels back and forth under one or more tool heads. Metal is removed on the cutting stroke; the return stroke brings the table back for the next pass. The process is mainly used when the workpiece is too large, heavy, or awkward for smaller reciprocating machines.

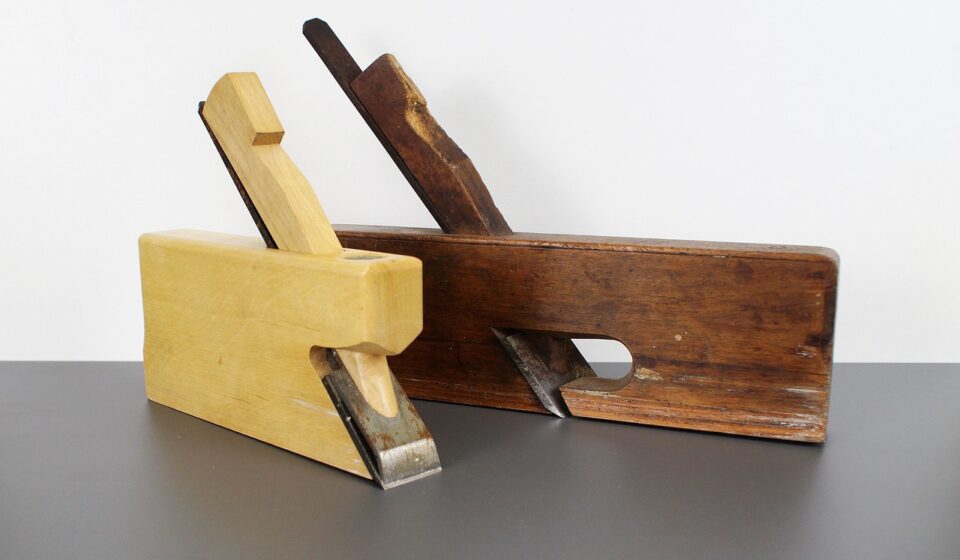

The term can cause confusion because woodworking also uses “planer” for machines that flatten boards or bring them to thickness. In a machine-shop context, and in this machine tools category, a planer machine usually means a heavy-duty metalworking planer used for flat surfaces, long grooves, guideways, machine beds, and large castings.

How the working principle differs from other machine tools

A planer is part of the reciprocating machine tool family. Its basic principle is straightforward: create a straight cutting path between the workpiece and a single-point tool, then repeat that path with a small feed movement until the surface reaches the required size and finish. The distinctive feature is the moving mass. In most planer machines, the table and workpiece reciprocate while the tool head is adjusted for depth of cut and feed.

A typical cycle includes work holding, tool setting, the cutting stroke, the return stroke, cross feed, and repeated passes. The tool must have enough clearance to cut on the working stroke without rubbing during the return. Depending on the machine design, feed may be applied at the end of a stroke or through a controlled mechanism linked to table movement.

This is not the fastest method for every flat surface. On modern equipment, rotary milling cutters and grinding wheels often offer higher productivity or better finishing options. Planing remains relevant when the job calls for long, straight surfaces, heavy components, deep slots, and rigid work holding rather than high spindle speed.

Main parts of a planer machine

Designs vary, but most metal planers use the same main assemblies. Knowing these parts helps buyers and operators judge rigidity, usable capacity, and maintenance condition.

• Bed: The machine foundation. It supports the guideways and absorbs cutting forces. A worn or damaged bed can affect straightness and repeatability.
• Table: The reciprocating platform that carries the workpiece. It usually has T-slots or other clamping features for fixtures, plates, and large castings.
• Columns or housings: Upright structures that support the cross rail. Double-housing machines have columns on both sides; open-side machines leave one side accessible for wide parts.
• Cross rail: A horizontal member that carries one or more tool heads and can be adjusted vertically to suit the workpiece height.
• Tool heads: Adjustable holders for cutting tools. Some planers use multiple heads so more than one surface can be machined in a single setup.
• Drive and reversing mechanism: The system that produces table reciprocation and controls stroke length, speed, and reversal.
• Feed mechanism: Provides incremental movement of the tool head or table so the next pass cuts a new strip of material.
• Controls and guarding: Include start, stop, emergency stop, speed selection, travel limits, chip protection, and guarding for moving and power-transmission parts.

For used equipment, the physical condition of the bed, table guideways, drive system, and cross-rail adjustment can be more important than nameplate capacity. A large machine with poor alignment may be less useful than a smaller machine in sound mechanical condition.

Common types of planer machines

Planer machines are often classified by frame layout and the way the tool heads are supported. The following categories are common in machining references and used-machine listings.

These names are not always used consistently by dealers and older manuals. When comparing machines, confirm the usable table size, distance between housings, maximum work height under the cross rail, stroke length, load rating, power, speed range, and tooling configuration. Do not rely on the type name alone.

Planer machine vs shaper, slotter, milling machine, and grinder

Planers are often compared with nearby processes because several machine tools can generate flat or straight surfaces. The practical difference is not only the cutting tool. Capacity, motion, work holding, and required surface quality all affect the choice.

A planer is most convincing when the workpiece is long, heavy, and needs a straight flat reference surface. Milling may be better for complex geometry or production speed. Grinding is usually considered when finishing accuracy and surface texture matter more than stock removal rate.

Applications where a planer machine still makes sense

Planer machines are less common in new workshops than CNC milling centers, but they still fit specific heavy-machining jobs. Typical applications include machining machine beds, columns, large base plates, press components, large slideways, straight grooves, T-slots, V-ways, and long seating surfaces. A planer can also be useful in repair work when an older machine base or large casting must be corrected without redesigning the part for a modern machining center.

The use of single-point tools can be an advantage. Tooling may be simpler and less expensive than large custom milling cutters, and the cutting edge can be ground for special forms. When the workpiece geometry allows it, multiple tool heads can machine more than one surface in a single setup, reducing handling time on heavy components.

The limitations are significant. The reciprocating table creates a non-productive return stroke, the machine takes substantial floor space, and setup requires careful alignment. For high-volume production of smaller parts, a planer is rarely the first choice. For large components where work holding, straightness, and access drive the decision, it can still be a practical solution. See also: cnc and robotics.

Key specifications to check before selecting a planer machine

A planer machine should be evaluated against the actual part envelope and machining task, not just the largest advertised number. Key specifications include usable table length and width, maximum stroke, maximum distance under the cross rail, distance between housings, table load capacity, available speeds and feeds, motor power, number of tool heads, and clamping options.

For a used planer, inspection needs to go further. Check guideway wear, table straightness, backlash in feed screws, the condition of the reversing mechanism, lubrication system, electrical controls, emergency stops, guards, and signs of crash damage. Ask whether manuals, electrical drawings, tooling, clamps, and spare parts are available. If the machine will be installed in a regulated workplace, review guarding and control upgrades before purchase rather than after installation.

• Match table capacity to the heaviest real workpiece, including fixtures.
• Confirm that the cross rail clears the part, tooling, and clamps.
• Check whether the stroke length covers the full cut and safe overtravel.
• Evaluate floor loading, foundation needs, crane access, and chip removal.
• Compare planing with milling, grinding, or outsourcing before committing floor space.

Safety, setup, and maintenance considerations

A planer machine presents hazards at the point of operation, reciprocating table, flying chips, heavy workpieces, pinch points, and power-transmission components. OSHA machine-guarding guidance describes core machine areas such as the point of operation, power-transmission parts, and operating controls. Those concepts are directly relevant to planers, including older machines built before current guarding expectations.

Safe operation starts with work holding. The workpiece must be clamped so it cannot shift under cutting force or table reversal. Operators should keep hands, measuring tools, and loose items away from the table travel path. Chip shields, eye protection, controlled access around the table stroke, and clearly accessible stop controls are especially important because the cutting zone and moving table can cover a large footprint.

Maintenance should focus on lubrication, clean guideways, feed and drive mechanisms, table reversal, gibs, clutches, brakes, limit stops, and electrical controls. A planer that has been idle for years should not go directly into production without inspection. Old oil, blocked lubrication lines, worn ways, and unreliable controls can turn a mechanically simple machine into a high-risk asset.

Frequently asked questions

Is a planer machine the same as a woodworking planer?

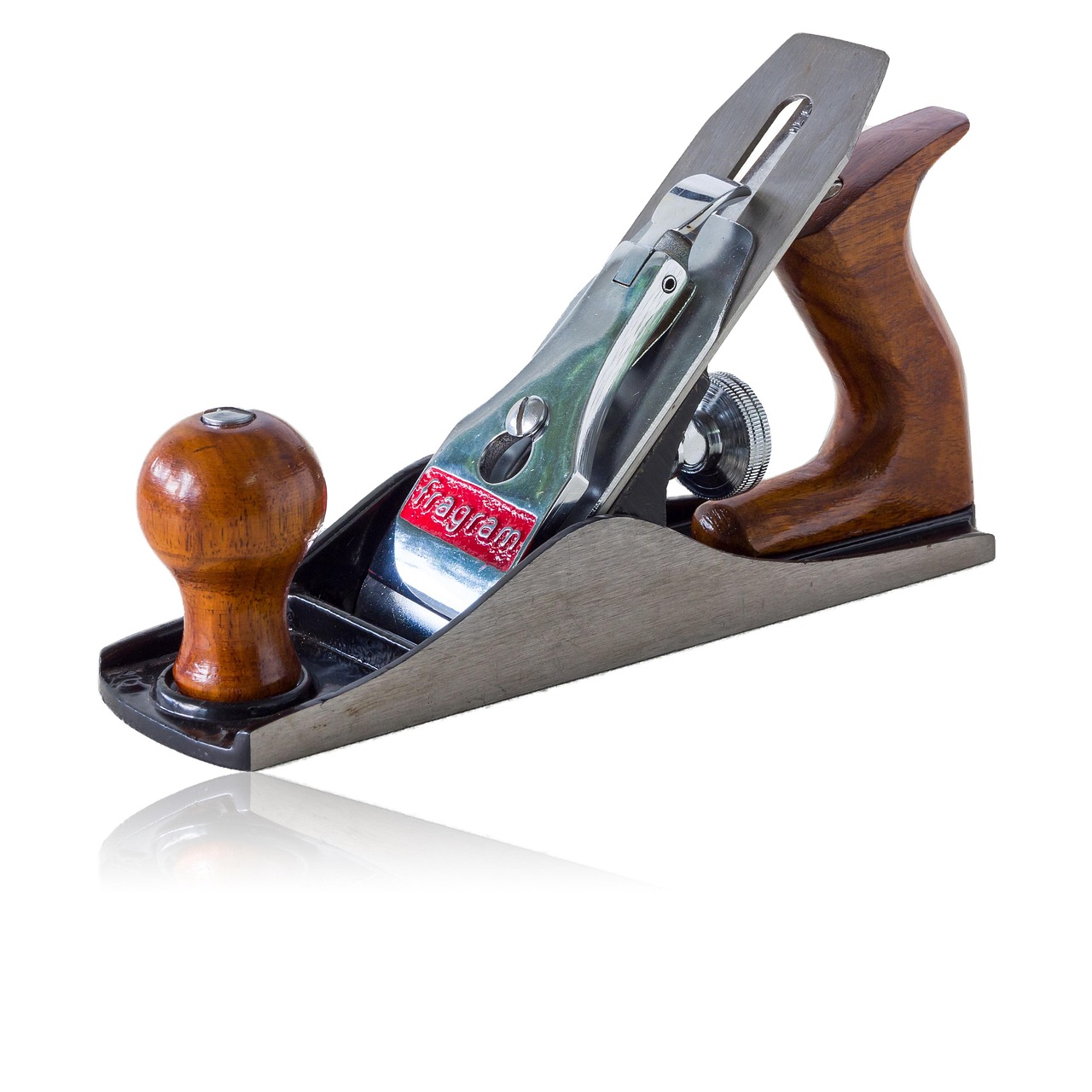

No. In metalworking, a planer machine is a reciprocating machine tool for large metal parts. In woodworking, a planer usually refers to a machine that trims boards to thickness or prepares a flat surface. The search term is shared, but the machines, tooling, and hazards are different.

What is the main difference between a planer and a shaper?

In a planer, the workpiece is usually clamped to a table that reciprocates beneath the cutting tool. In a shaper, the cutting tool normally reciprocates while the workpiece remains fixed except for feed movements. This makes planers better suited to larger and heavier workpieces.

Why are planer machines less common in modern production?

Many flat-surface jobs can now be done faster with milling machines, CNC gantry mills, planer mills, or grinding equipment. Traditional planers still have a role where long, heavy, straight surfaces and simple tooling are more important than production speed.

Can a planer machine produce accurate flat surfaces?

Yes, a well-maintained planer can produce accurate flat surfaces, especially on large components. Final accuracy depends on machine condition, bed and table alignment, tool geometry, work holding, cutting parameters, temperature stability, and operator skill.

What should be checked first on a used planer machine?

Start with the guideways, table movement, cross-rail adjustment, feed mechanisms, lubrication, electrical controls, guards, and emergency stops. Also verify that the machine’s capacity matches the real part size and weight, not only the nominal table dimensions.
